CircuitHub Stackup Information

Standard Multi-Layer PCB Stackups

Core PCB Materials

Normal TG material with TG130-135

Manufacturer
Material
ShengYi
KingBoard

High TG material with over TG170

Manufacturer
Material
ShengYi

High frequency material (RF boards)

Manufacturer
Material
Tacanic
More available, please reach out to us

Prepreg Material Information

Manufacturer
Material

High frequency material (RF boards)

Prepreg Type
Thickness (mm)
Resin Content
Dielectric Constant
2116
0.12
55%
4.5
7630
0.2
55%
4.7
7628
0.185
43%
4.7
1080
0.075
65%
4.2

Custom Stackups

Use our custom stackup tool to specify custom materials, thicknesses, and dielectric properties for your circuitboard layers.

Learn more

Stackups

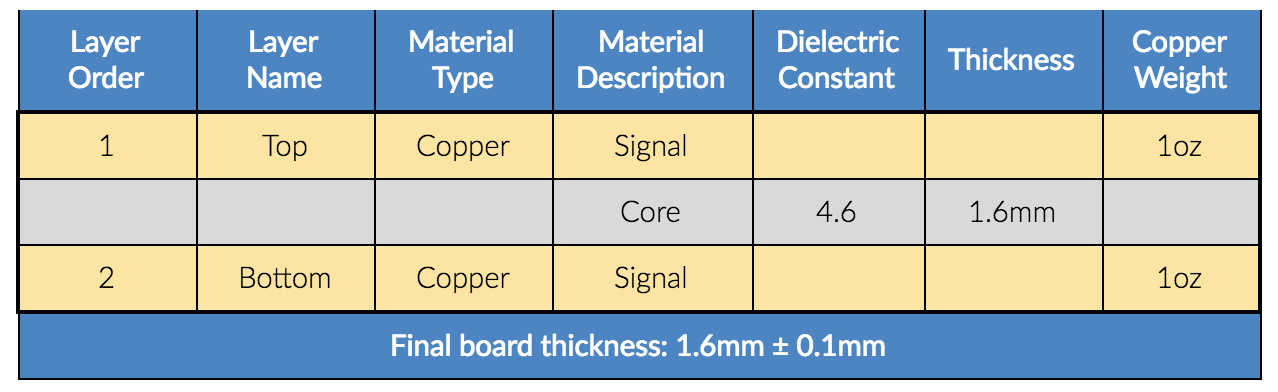

2-Layer Stackup

 1.6mm thickness
Final board thickness:
1.6mm ± 0.13mm
Layer Order
Layer Name
Material Type
Description
Dielectric Constant
Thickness (mm)
Copper Weight
1
Top
Copper
Signal
0.035
1oz
Core
4.6
1.53
2
Bottom
Copper
Signal
0.035
1oz
Final board thickness: 1.6mm ± 0.13mm

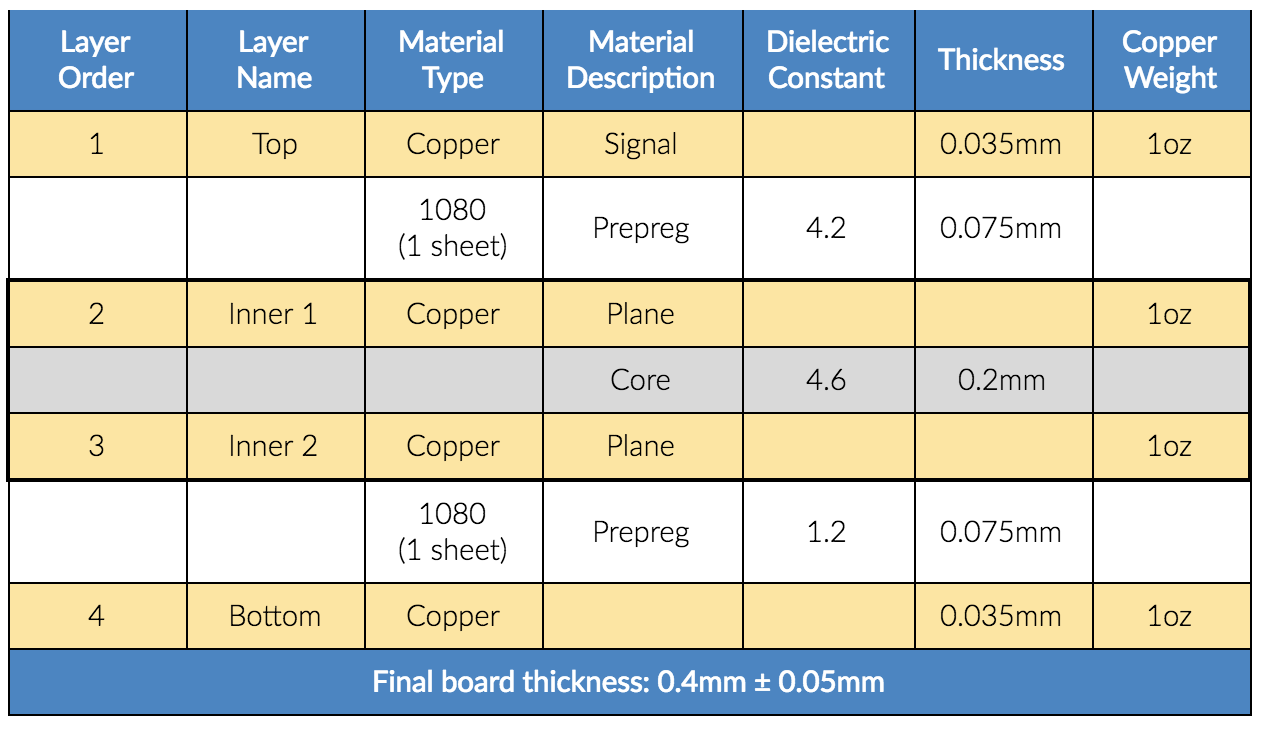

4-Layer Stackup

Final board thickness:
0.4mm ± 0.1mm
Layer Order
Layer Name
Material Type
Description
Dielectric Constant
Thickness (mm)
Copper Weight
1
Top
Copper
Signal
0.035
1oz
1080 (1 sheet)
Prepreg
4.2
0.075
2
Inner 1
Copper
Plane
0.035
1oz
Core
4.6
0.13
3
Inner 2
Copper
Plane
0.035
1oz
1080 (1 sheet)
Prepreg
4.2
0.075
4
Bottom
Copper
0.035
1oz
Final board thickness: 0.4mm ± 0.1mm
Final board thickness:
0.6mm ± 0.1mm
Layer Order
Layer Name
Material Type
Description
Dielectric Constant
Thickness (mm)
Copper Weight
1
Top
Copper
Signal
0.035
1oz
2116(1 sheet)
Prepreg
4.5
0.12
2
Inner 1
Copper
Plane
0.035
1oz
Core
4.6
0.23
3
Inner 2
Copper
Plane
0.035
1oz
2116(1 sheet)
Prepreg
4.5
0.12
4
Bottom
Copper
0.035
1oz
Final board thickness: 0.6mm ± 0.1mm
Final board thickness:
0.8mm ± 0.1mm
Layer Order
Layer Name
Material Type
Description
Dielectric Constant
Thickness (mm)
Copper Weight
1
Top
Copper
Signal
0.035
1oz
7630(1 sheet)
Prepreg
4.7
0.2
2
Inner 1
Copper
Plane
0.035
1oz
Core
4.6
0.23
3
Inner 2
Copper
Plane
0.035
1oz
7630(1 sheet)
Prepreg
4.7
0.2
4
Bottom
Copper
0.035
1oz
Final board thickness: 0.8mm ± 0.1mm
Final board thickness:
1.0mm ± 0.1mm
Layer Order
Layer Name
Material Type
Description
Dielectric Constant
Thickness (mm)
Copper Weight
1
Top
Copper
Signal
0.035
1oz
7630(1 sheet)
Prepreg
4.7
0.2
2
Inner 1
Copper
Plane
0.035
1oz
Core
4.6
0.43
3
Inner 2
Copper
Plane
0.035
1oz
7630(1 sheet)
Prepreg
4.7
0.2
4
Bottom
Copper
0.035
1oz
Final board thickness: 1.0mm ± 0.1mm
* non-preferred materials but possible
Final board thickness:
1mm ± 0.1mm
Layer Order
Layer Name
Material Type
Description
Dielectric Constant
Thickness (mm)
Copper Weight
1
Top
Copper
Signal
0.035
1oz
2116(1 sheet)
Prepreg
4.5
0.12
2
Inner 1
Copper
Plane
0.035
1oz
Core
4.6
0.53
3
Inner 2
Copper
Plane
0.035
1oz
2116(1 sheet)
Prepreg
4.5
0.12
4
Bottom
Copper
0.035
1oz
Final board thickness: 1.0mm ± 0.1mm

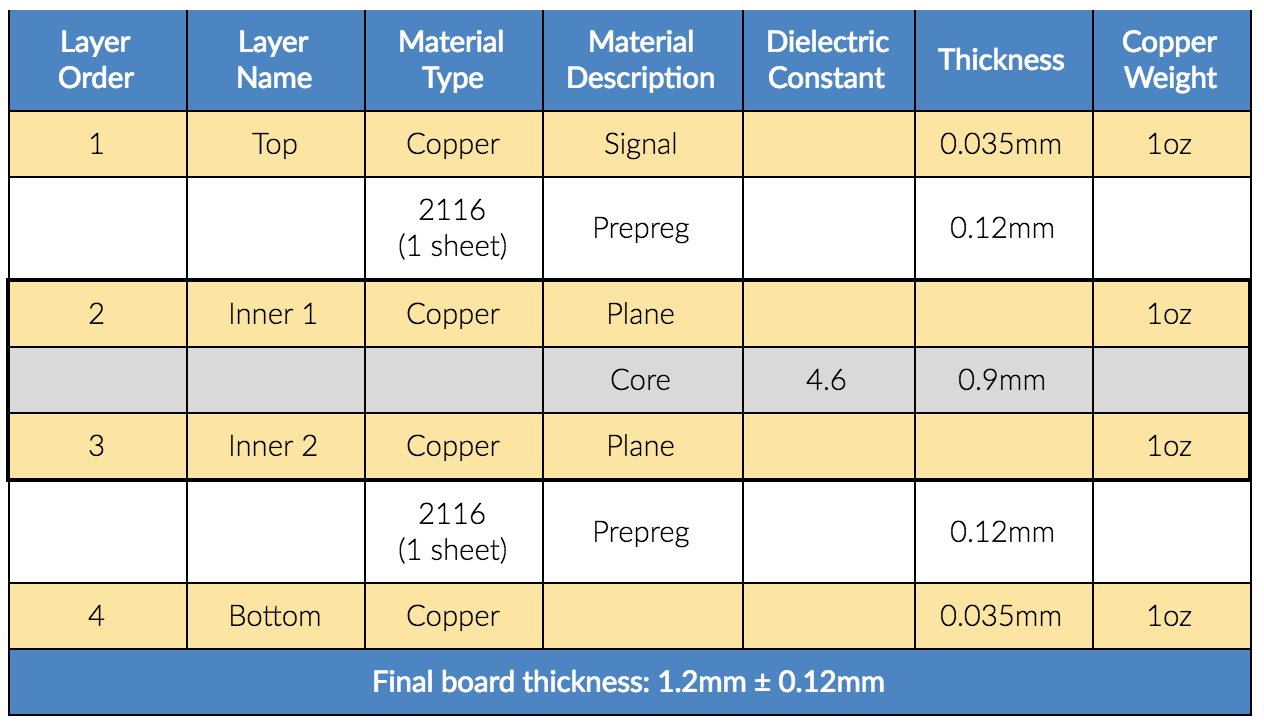

Final board thickness:
1.2mm ± 0.12mm
Layer Order
Layer Name
Material Type
Description
Dielectric Constant
Thickness (mm)
Copper Weight
1
Top
Copper
Signal
0.035
1oz
2116(1 sheet)
Prepreg
4.5
0.12
2
Inner 1
Copper
Plane
0.035
1oz
Core
4.6
0.83
3
Inner 2
Copper
Plane
0.035
1oz
2116(1 sheet)
Prepreg
4.5
0.12
4
Bottom
Copper
0.035
1oz
Final board thickness: 1.2mm ± 0.12mm
Final board thickness:
1.6mm ± 0.13mm
Layer Order
Layer Name
Material Type
Description
Dielectric Constant
Thickness (mm)
Copper Weight
1
Top
Copper
Signal
0.035
1oz
7630(1 sheet)
Prepreg
4.7
0.2
2
Inner 1
Copper
Plane
0.035
1oz
Core
4.6
1.03
3
Inner 2
Copper
Plane
0.035
1oz
7630(1 sheet)
Prepreg
4.7
0.2
4
Bottom
Copper
0.035
1oz
Final board thickness: 1.6mm ± 0.13mm

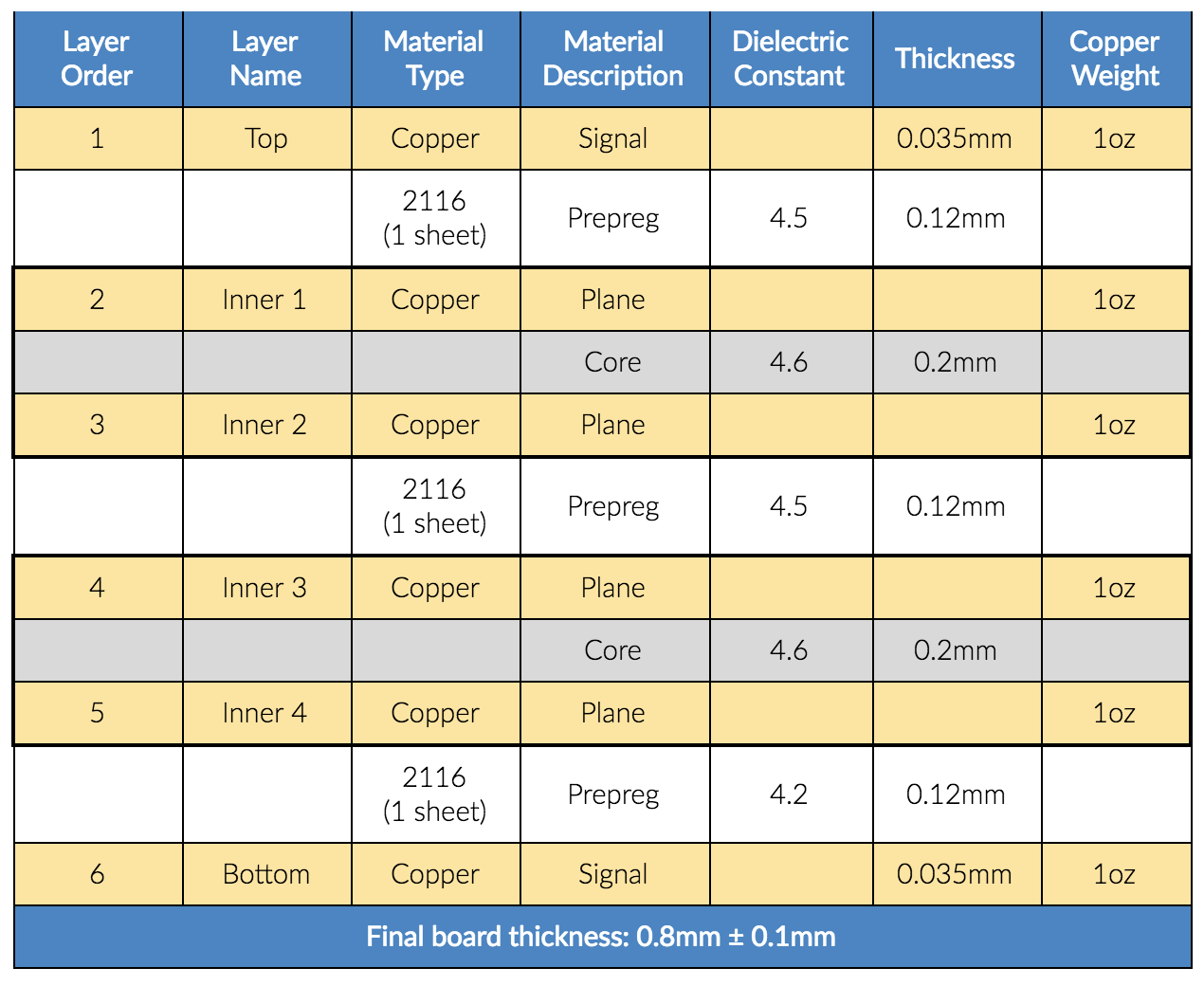

6-Layer Stackup

Final board thickness:
0.8mm ± 0.1mm
Layer Order
Layer Name
Material Type
Description
Dielectric Constant
Thickness (mm)
Copper Weight
1
Top
Copper
Signal
0.035
1oz
2116(1 sheet)
Prepreg
4.5
0.12
2
Inner 1
Copper
Plane
0.035
1oz
Core
4.6
0.13
3
Inner 2
Copper
Plane
0.035
1oz
2116(1 sheet)
Prepreg
4.5
0.12
4
Inner 3
Copper
Plane
0.035
1oz
Core
4.6
0.13
5
Inner 4
Copper
Plane
0.035
1oz
2116(1 sheet)
Prepreg
4.2
0.12
6
Bottom
Copper
Signal
0.035
1oz
Final board thickness: 0.8mm ± 0.1mm

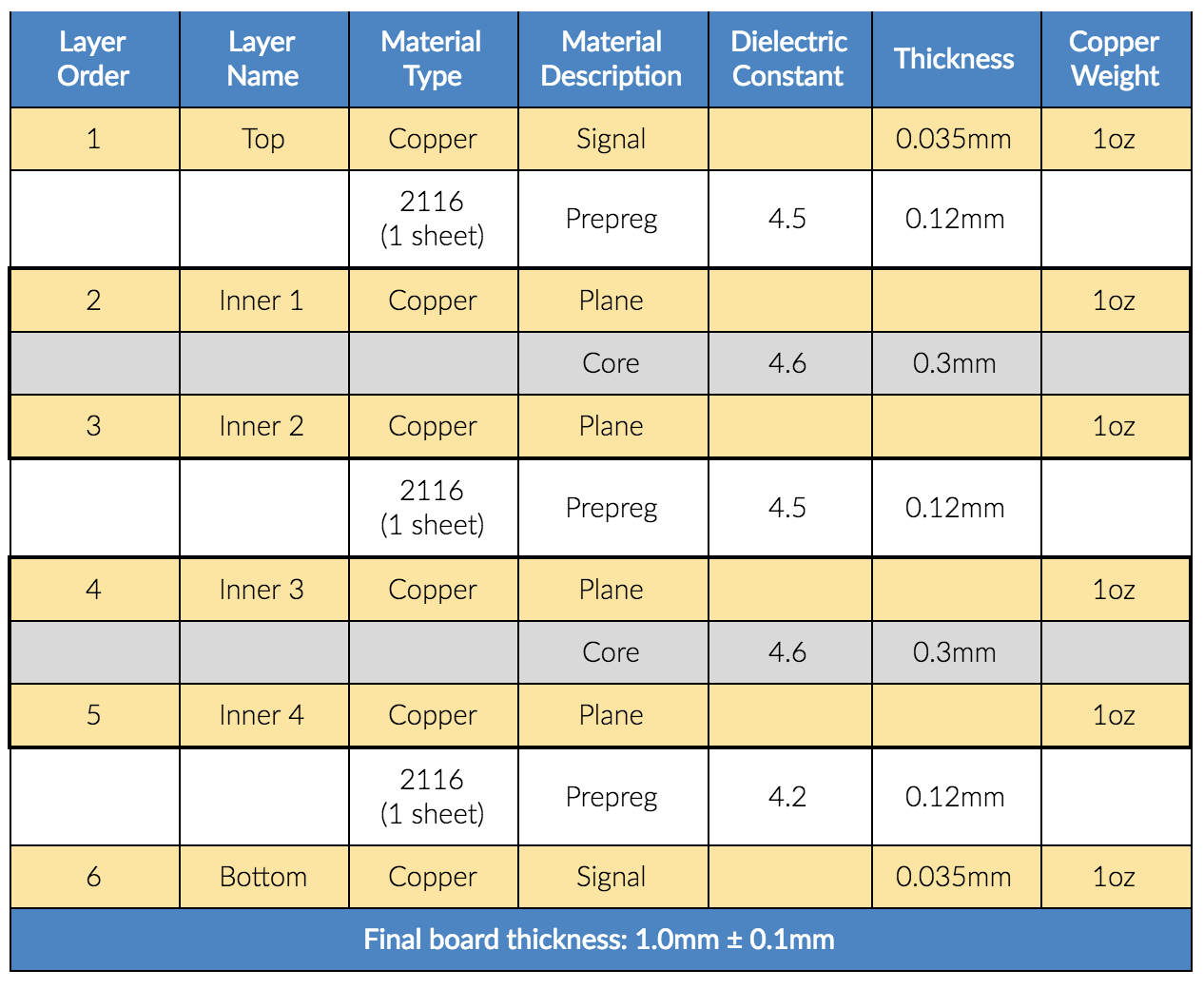

Final board thickness:
1.0mm ± 0.1mm
Layer Order
Layer Name
Material Type
Description
Dielectric Constant
Thickness (mm)
Copper Weight
1
Top
Copper
Signal
0.035
1oz
2116(1 sheet)
Prepreg
4.5
0.12
2
Inner 1
Copper
Plane
0.035
1oz
Core
4.6
0.23
3
Inner 2
Copper
Plane
0.035
1oz
2116(1 sheet)
Prepreg
4.5
0.12
4
Inner 3
Copper
Plane
0.035
1oz
Core
4.6
0.23
5
Inner 4
Copper
Plane
0.035
1oz
2116(1 sheet)
Prepreg
4.2
0.12
6
Bottom
Copper
Signal
0.035
1oz
Final board thickness: 1.0mm ± 0.1mm
Final board thickness:
1.6mm ± 0.13mm
Layer Order
Layer Name
Material Type
Description
Dielectric Constant
Thickness (mm)
Copper Weight
1
Top
Copper
Signal
0.035
1oz
2116(1 sheet)
Prepreg
4.5
0.12
2
Inner 1
Copper
Plane
0.035
1oz
Core
4.6
0.53
3
Inner 2
Copper
Plane
0.035
1oz
2116(1 sheet)
Prepreg
4.5
0.12
4
Inner 3
Copper
Plane
0.035
1oz
Core
4.6
0.53
5
Inner 4
Copper
Plane
0.035
1oz
2116(1 sheet)
Prepreg
4.2
0.12
6
Bottom
Copper
Signal
0.035
1oz
Final board thickness: 1.6mm ± 0.13mm
* non-preferred materials but possible
Final board thickness:
1.6mm ± 0.13mm
Layer Order
Layer Name
Material Type
Description
Dielectric Constant
Thickness (mm)
Copper Weight
1
Top
Copper
Signal
0.035
1oz
7630(1 sheet)
Prepreg
4.7
0.2
2
Inner 1
Copper
Plane
0.035
1oz
Core
4.6
0.43
3
Inner 2
Copper
Plane
0.035
1oz
2116(1 sheet)
Prepreg
4.5
0.12
4
Inner 3
Copper
Plane
0.035
1oz
Core
4.6
0.43
5
Inner 4
Copper
Plane
0.035
1oz
7630(1 sheet)
Prepreg
4.7
0.2
6
Bottom
Copper
Signal
0.035
1oz
Final board thickness: 1.6mm ± 0.13mm
Final board thickness:
2.0mm ± 0.2mm
Layer Order
Layer Name
Material Type
Description
Dielectric Constant
Thickness (mm)
Copper Weight
1
Top
Copper
Signal
0.035
1oz
7630 (1 sheet)
Prepreg
4.7
0.2
2
Inner 1
Copper
Plane
0.035
1oz
Core
4.6
0.53
3
Inner 2
Copper
Plane
0.035
1oz
7630 (1 sheet)
Prepreg
4.7
0.2
4
Inner 3
Copper
Plane
0.035
1oz
Core
4.6
0.53
5
Inner 4
Copper
Plane
0.035
1oz
7630 (1 sheet)
Prepreg
4.7
0.2
6
Bottom
Copper
Signal
0.035
1oz
Final board thickness: 2.0mm ± 0.2mm
* non-preferred materials but possible
Final board thickness:
2.0mm ± 0.2mm
Layer Order
Layer Name
Material Type
Description
Dielectric Constant
Thickness (mm)
Copper Weight
1
Top
Copper
Signal
0.035
1oz
2116 (1 sheet) + 7628 (1 sheet)
Prepreg
4.7 + 4.7
0.12 + 0.185
2
Inner 1
Copper
Plane
0.035
1oz
Core
4.6
0.53
3
Inner 2
Copper
Plane
0.035
1oz
7630 (1 sheet)
Prepreg
4.7
0.12
4
Inner 3
Copper
Plane
0.035
1oz
Core
4.6
0.53
5
Inner 4
Copper
Plane
0.035
1oz
2116 (1 sheet) + 7628 (1 sheet)
Prepreg
4.7 + 4.7
0.12 + 0.185
6
Bottom
Copper
Signal
0.035
1oz
Final board thickness: 2.0mm ± 0.2mm

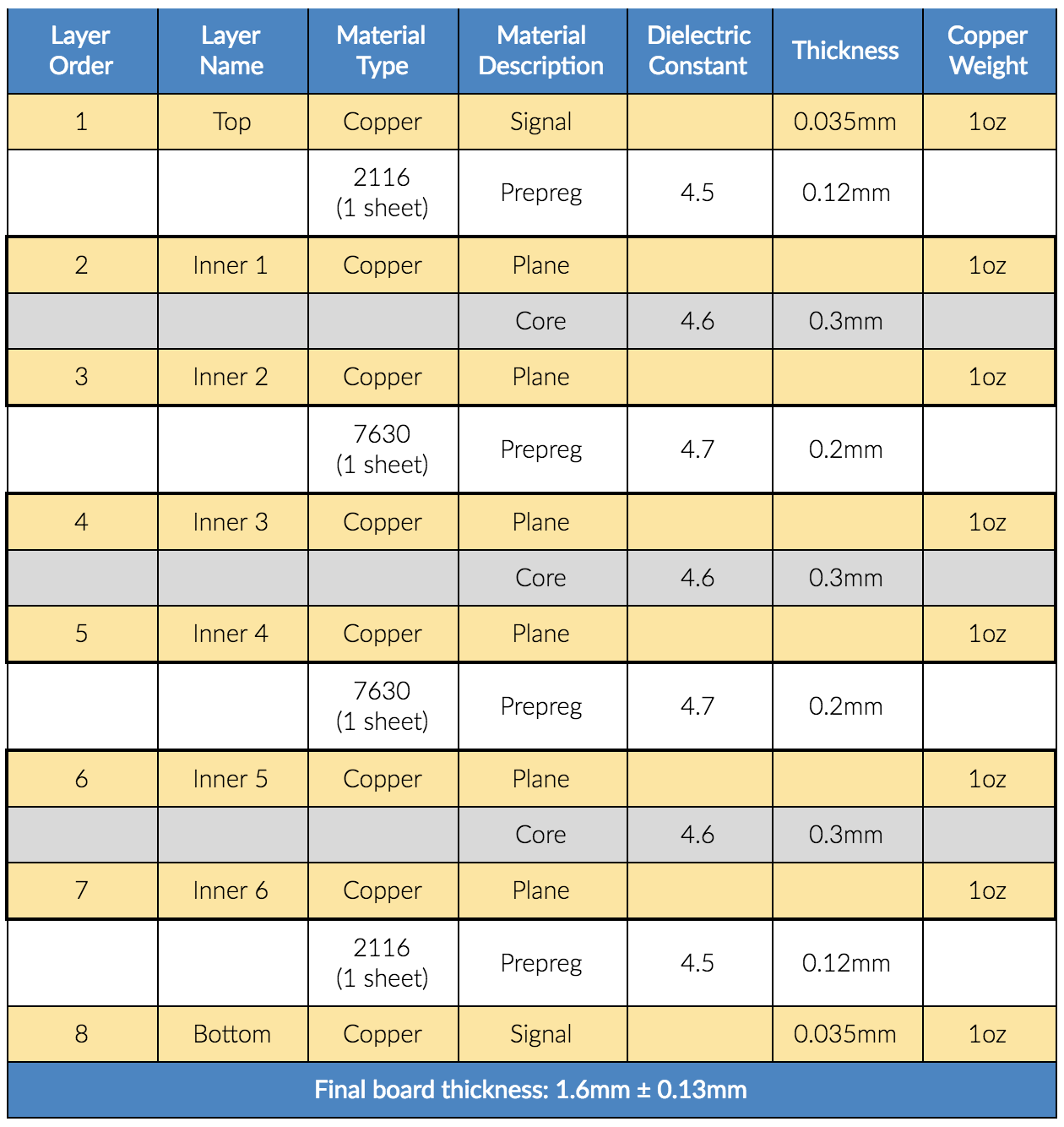

8-Layer Stackup

 1.6mm thickness
Final board thickness:
1.6mm ± 0.13mm
Layer Order
Layer Name
Material Type
Description
Dielectric Constant
Thickness (mm)
Copper Weight
1
Top
Copper
Signal
0.035
1oz
2116 (1 sheet)
Prepreg
4.5
0.12
2
Inner 1
Copper
Plane
0.035
1oz
Core
4.6
0.23
3
Inner 2
Copper
Plane
0.035
1oz
7630 (1 sheet)
Prepreg
4.7
0.2
4
Inner 3
Copper
Plane
0.035
1oz
Core
4.6
0.23
5
Inner 4
Copper
Plane
0.035
1oz
7630 (1 sheet)
Prepreg
4.7
0.2
6
Inner 5
Copper
Plane
0.035
1oz
Core
4.6
0.23
7
Inner 6
Copper
Plane
0.035
1oz
2116 (1 sheet)
Prepreg
4.5
0.12
8
Bottom
Copper
Signal
0.035
1oz
Final board thickness: 1.6mm ± 0.13mm

10-Layer Stackup

 1.6mm thickness
Final board thickness:
1.6mm ± 0.16mm
Layer Order
Layer Name
Material Type
Description
Dielectric Constant
Thickness (mm)
Copper Weight
1
Top
Copper
Signal
0.035
1oz
2116 (1 sheet)
Prepreg
4.7
0.2
2
Inner 1
Copper
Plane
0.035
1oz
Core
4.6
0.13
3
Inner 2
Copper
Plane
0.035
1oz
7630 (1 sheet)
Prepreg
4.5
0.12
4
Inner 3
Copper
Plane
0.035
1oz
Core
4.6
0.13
5
Inner 4
Copper
Plane
0.035
1oz
7630 (1 sheet)
Prepreg
4.5
0.12
6
Inner 5
Copper
Plane
0.035
1oz
Core
4.6
0.13
7
Inner 6
Copper
Plane
0.035
1oz
2116 (1 sheet)
Prepreg
4.5
0.12
8
Inner 7
Copper
Signal
0.035
1oz
Core
4.6
0.13
9
Inner 8
Copper
Plane
0.035
1oz
7630 (1 sheet)
Prepreg
4.7
0.2
10
Bottom
Copper
Signal
0.035
1oz
Final board thickness: 1.6mm ± 0.16mm
